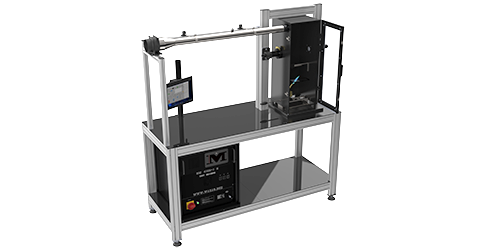

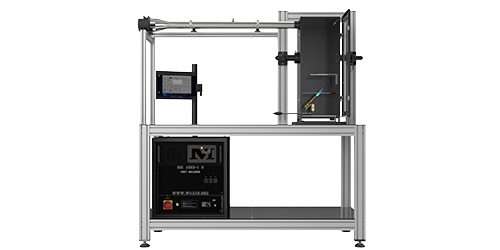

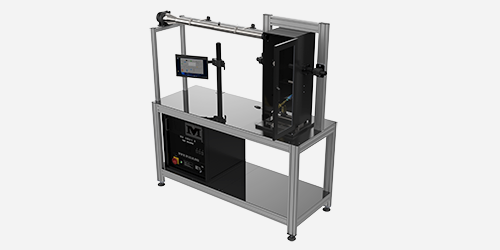

Test equipment DIN 4102-1 Annex B
Characteristics
The test device DIN 4102-1 Annex B is used to determine the reaction to fire of building materials.

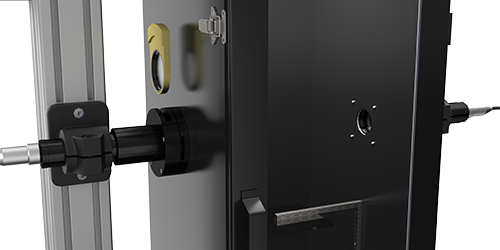

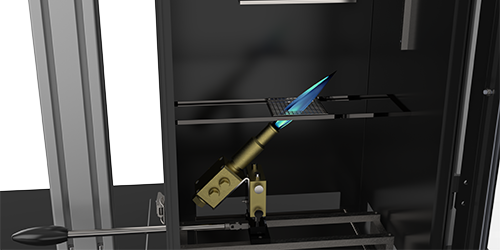

Material samples are exposed to a defined flame. The resulting smoke density is measured with an electronic light measurement system.
Technical specifications
| Type of specimen: | Building materials |
| Testing standards: | DIN 4102-1 Annex B |
| Supplies: | Propane gas Electrical current 230 VAC, 800 VA Compressed air |
| Dimensions: | 1726 x 630 x 1778 mm*(W x d x h) |
| Weight: | approx. 100 kg |

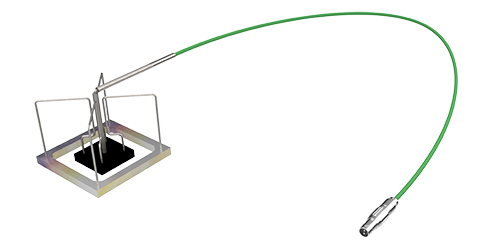

| Sensors | Electronic light measurement line Calibration device test temperature Ambient temperature Humidity |

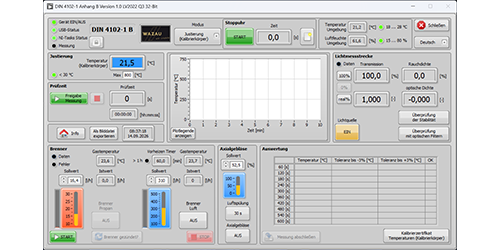

| Device control and measurement data logging | PC integrated, Operating system Windows 11, Software DIN 4102-1 Annex B |
| To be provided by the customer: | Smoke exhaust system, DN100 |
